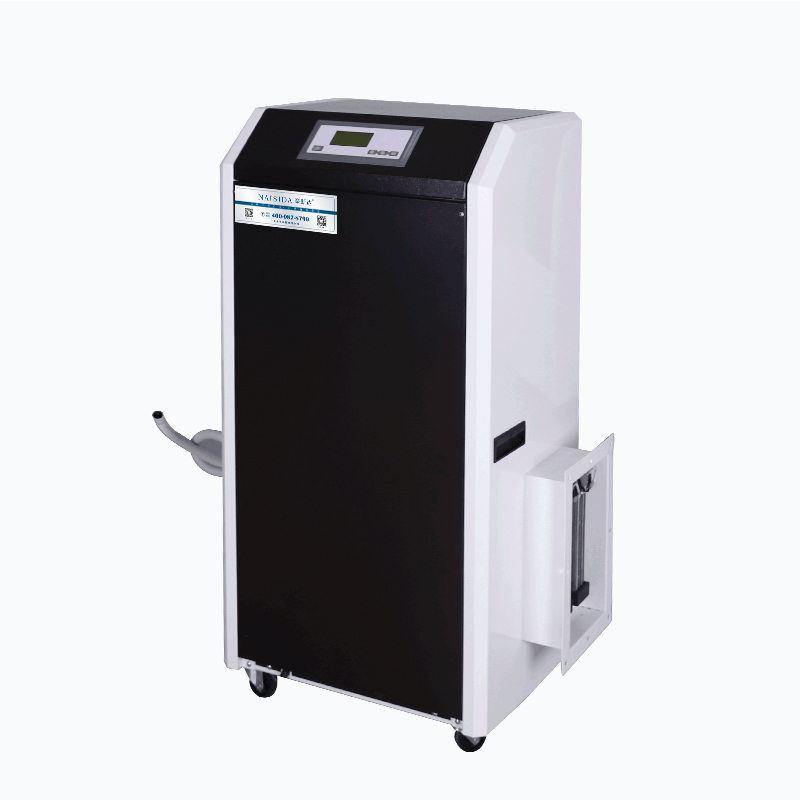

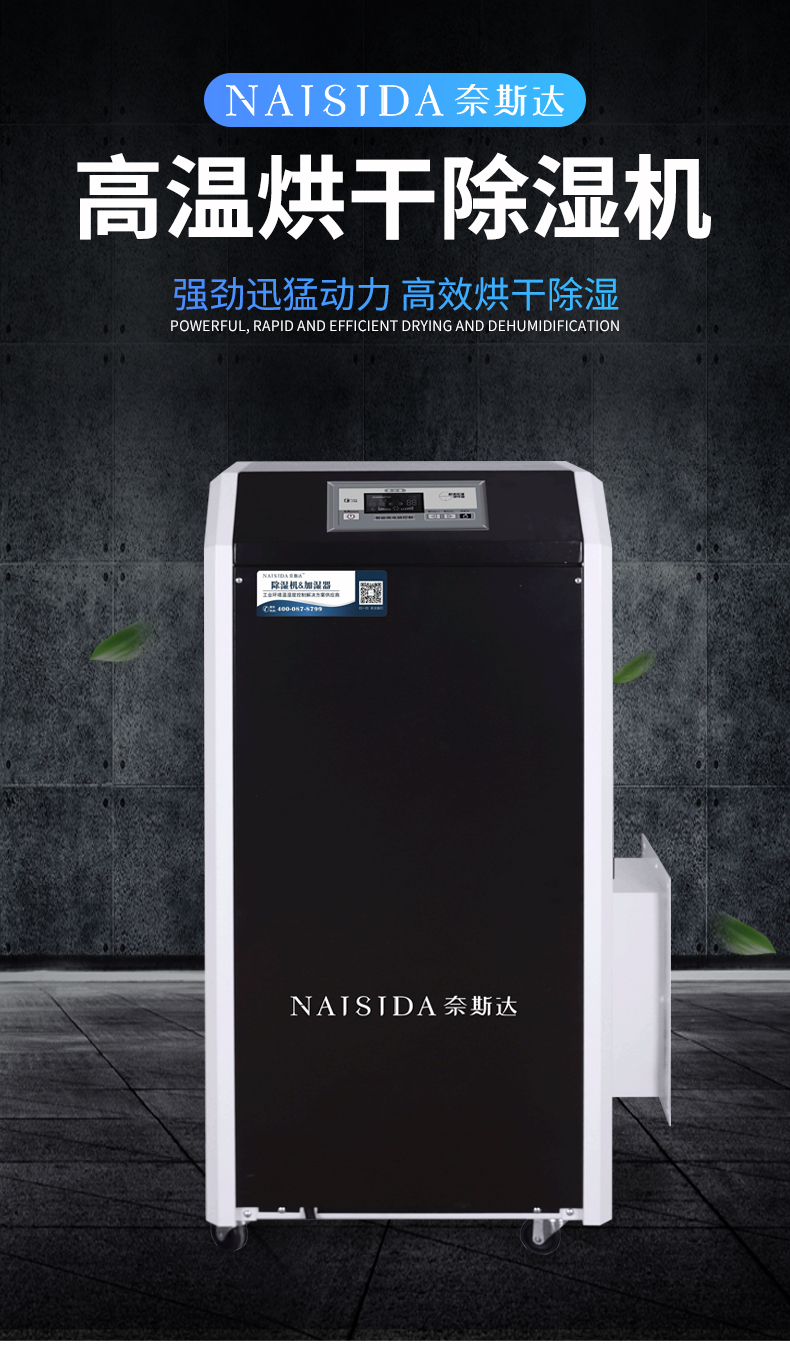

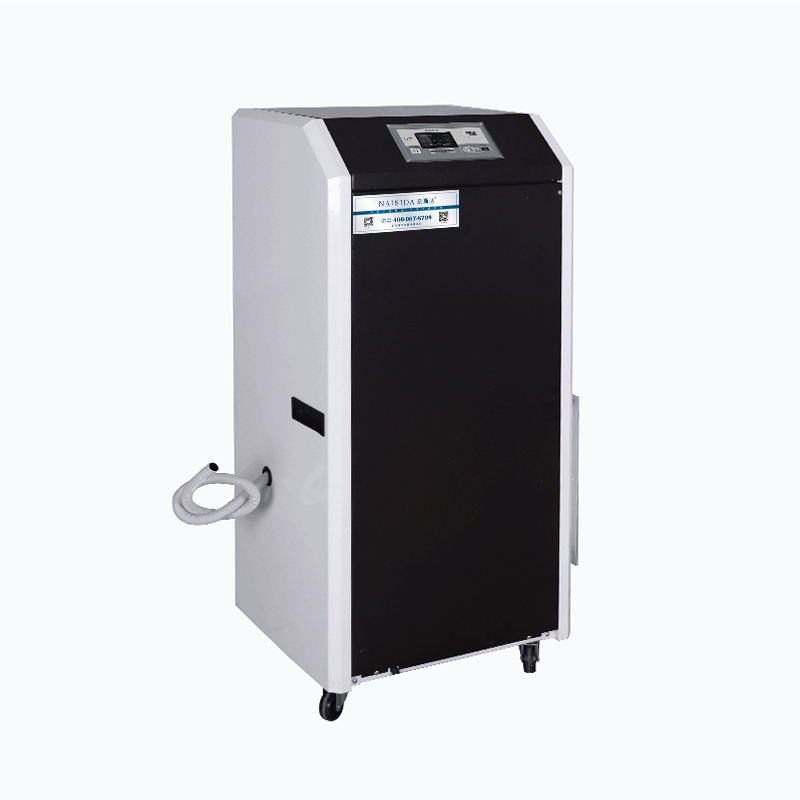

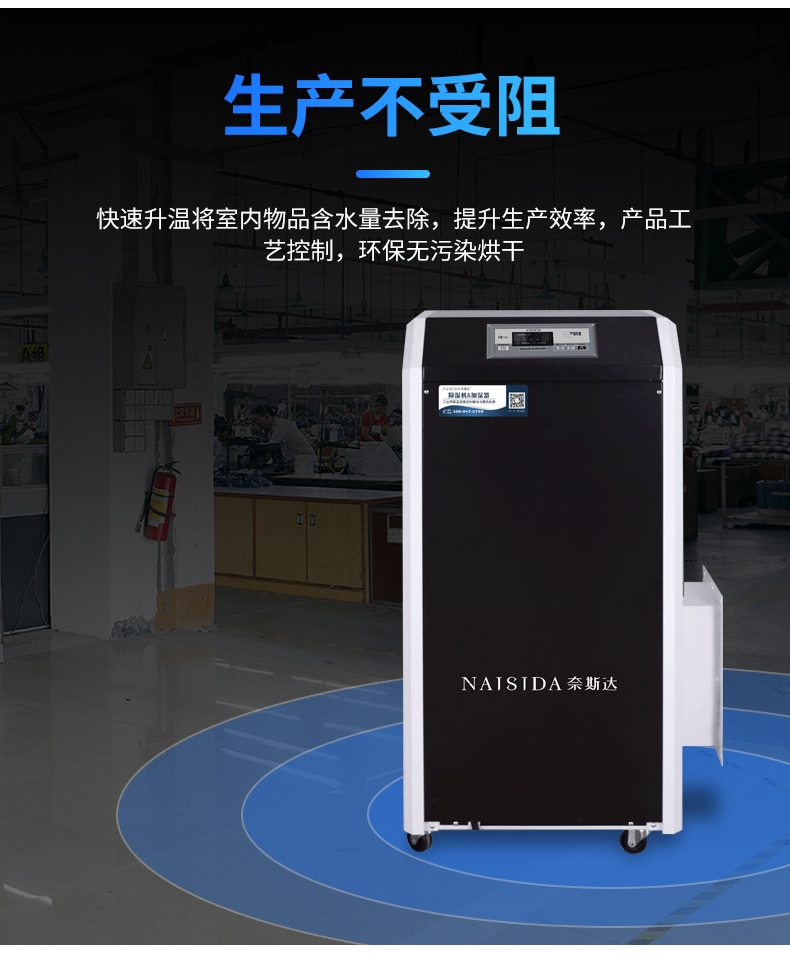

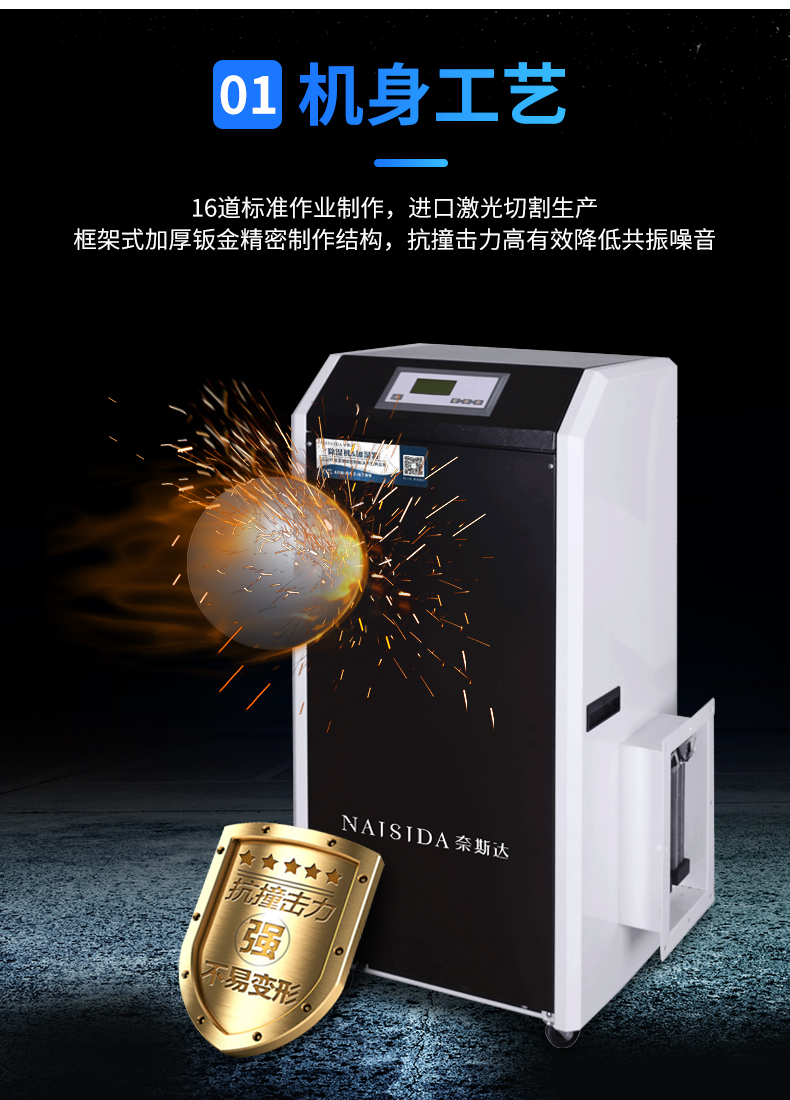

High temperature dryer (Raytheon I)

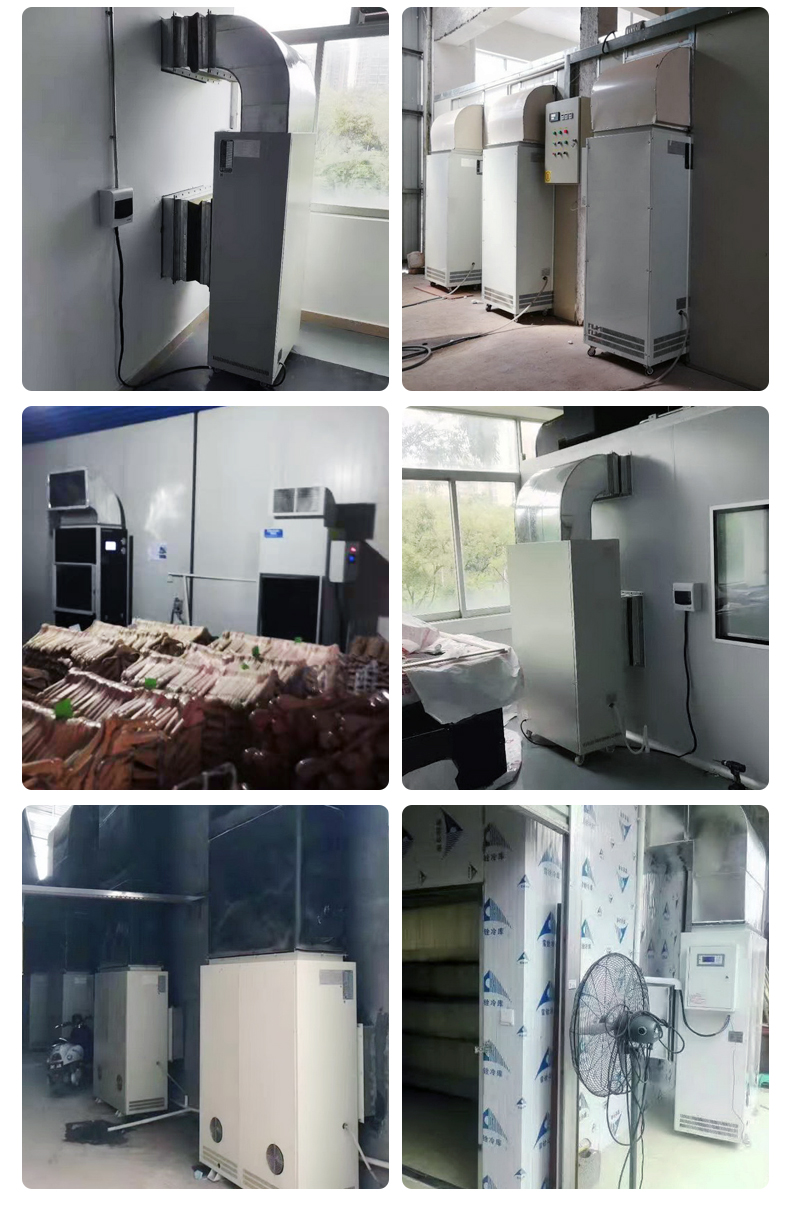

Applicable environment：Widely used in valuables warehouses, pharmaceuticals, food, electronics, leather, footwear, furniture, printing products, chemicals, tobacco and many other industries
Product Features：
Special custom：NO
Quality Certification：
Model：AY-HG5K
Product model
Adjustment range
control precision
Voltage
Dehumidification capacity (30℃ 80%)

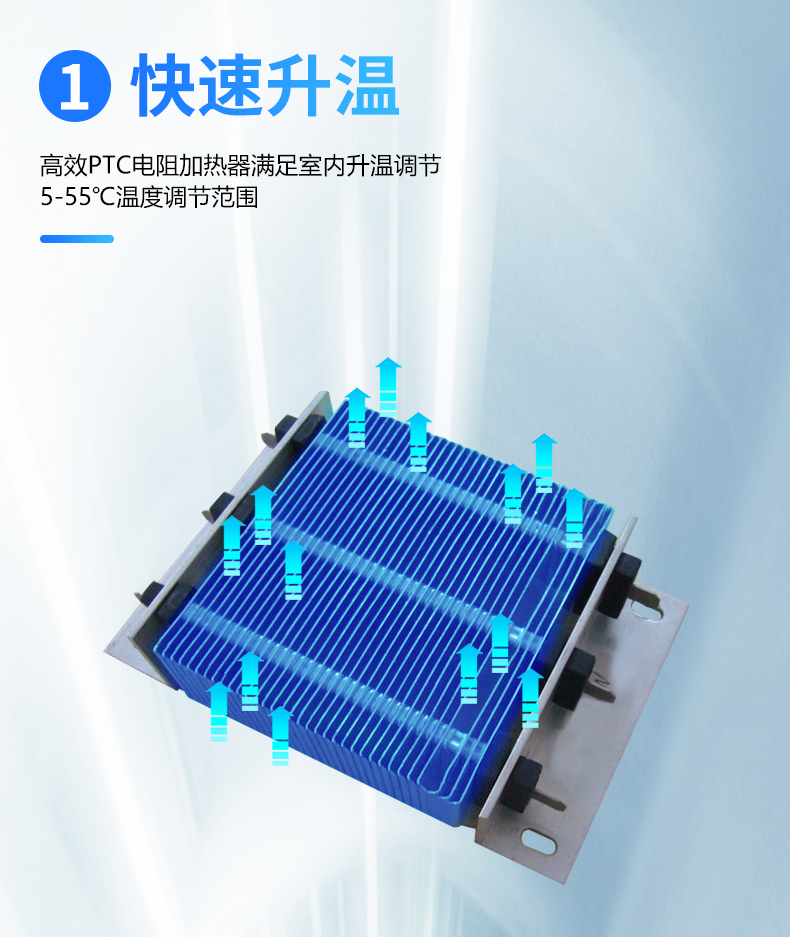

PTC heating power
Total power
Air volume
Refrigerant
Type of protection against electric shock
Protection level
Inlet flange

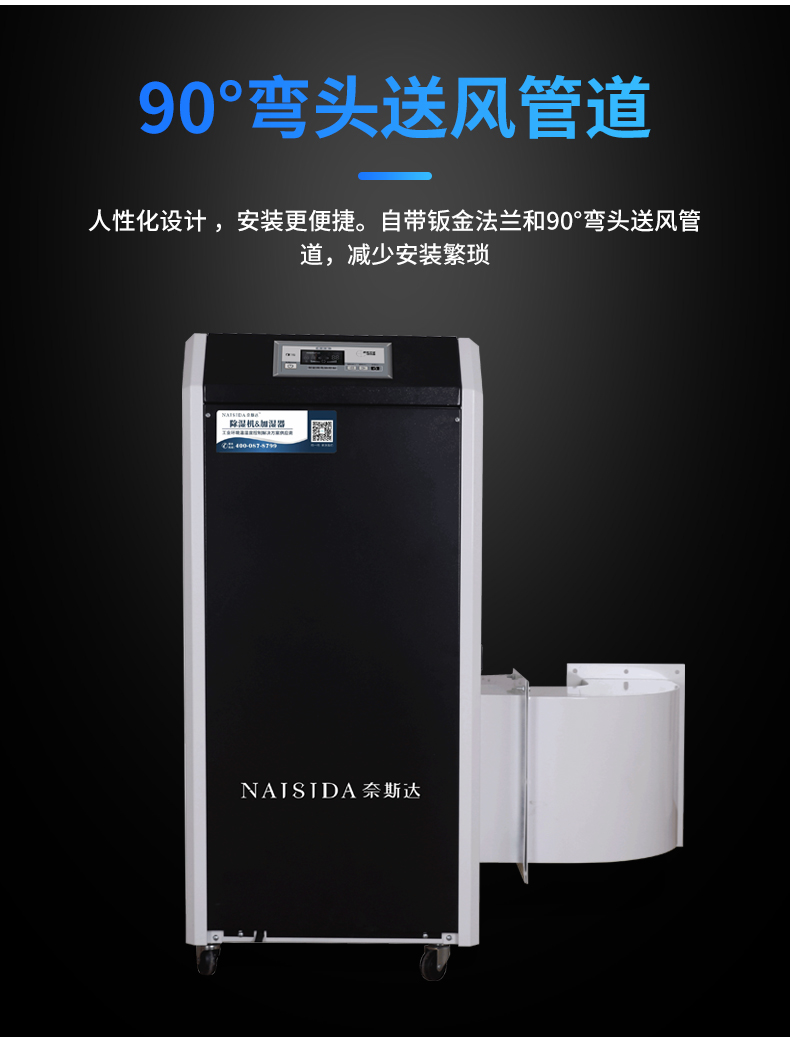

Air supply flange

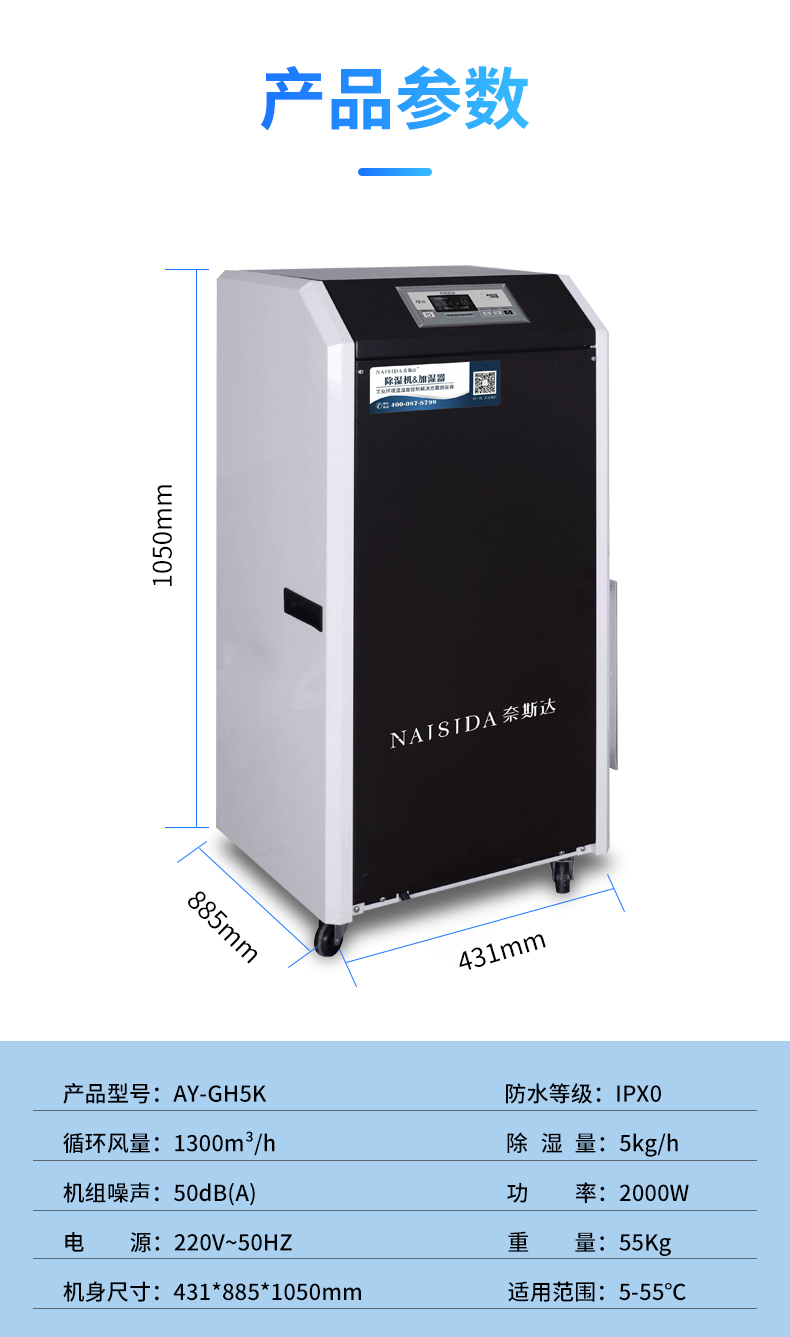

Dimensions
weight
proper temperature
Applicable area (3 meters in height)
AY-HG5K
10%-90%
3%RH
220V-50Hz
5kg/h
3kw
2kw+3kw
1300m³/h
R22
Type I
IP20
390*310
283*160
885*431*1051 (including elbow)
80kg
5~55℃
130-180m²
High temperature dryer (Fengshen II)Dehumidification：23L/h-75L/h
Area：m²
High temperature dryer (Raytheon II)Dehumidification：7kg/h~20kg/h
Area：200-700m²
High temperature dryer (Raytheon I)Dehumidification：7kg/h~20kg/h
Area：200-700m²
High temperature dryer (Raytheon I)Dehumidification：5kg/h
Area：130-180m²
High temperature dryer (Fengshen I)Dehumidification：8kg/h-20kg/h
Area：200-700m²
