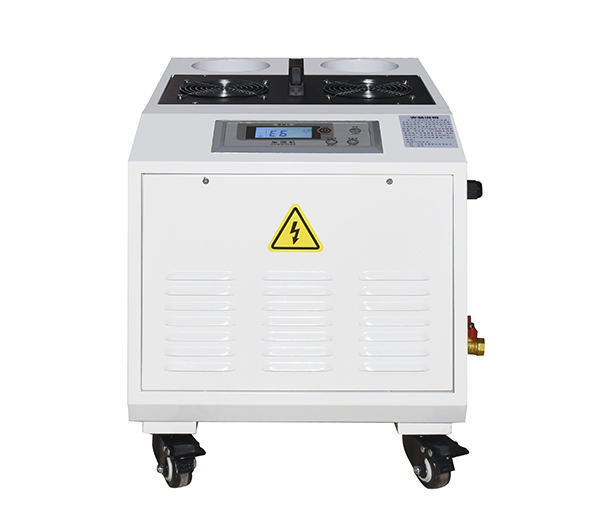

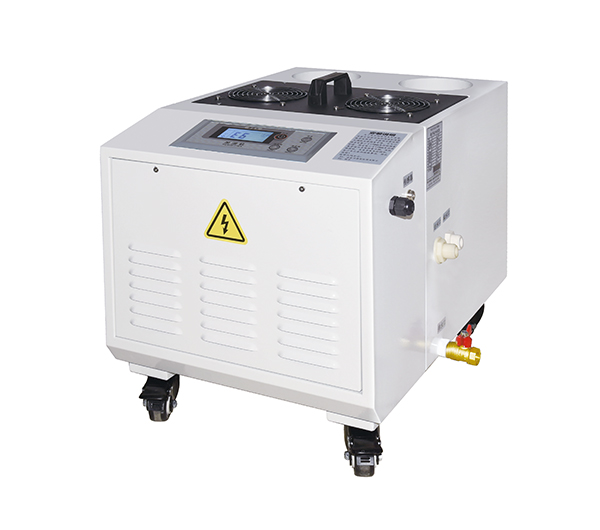

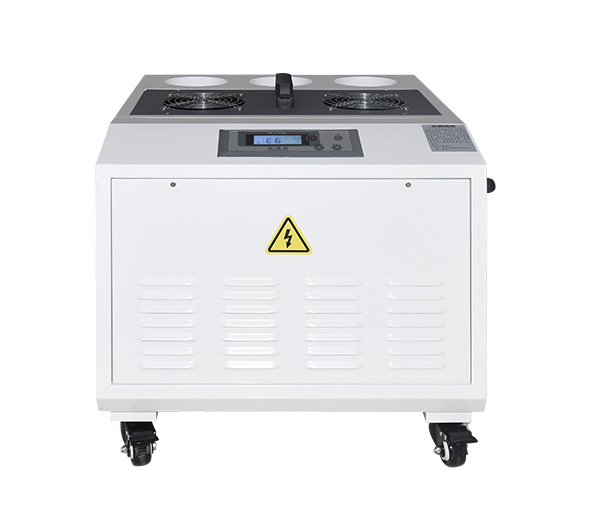

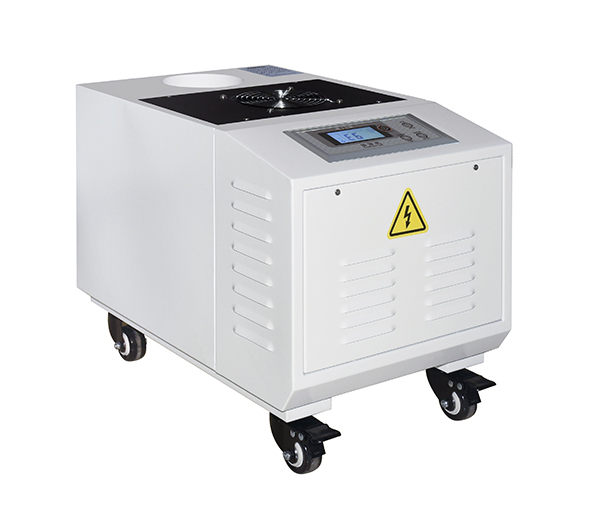

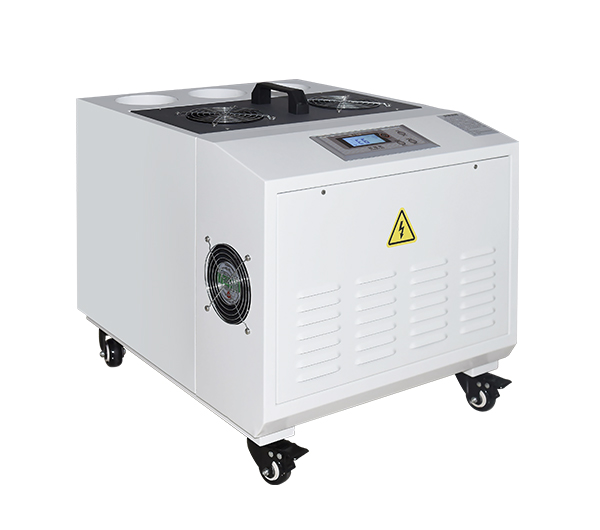

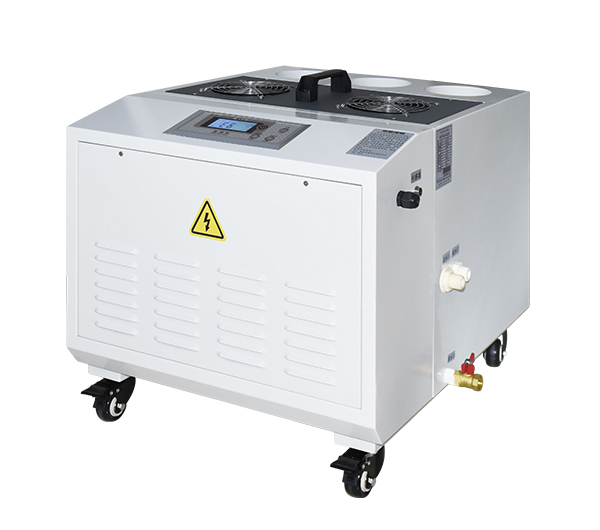

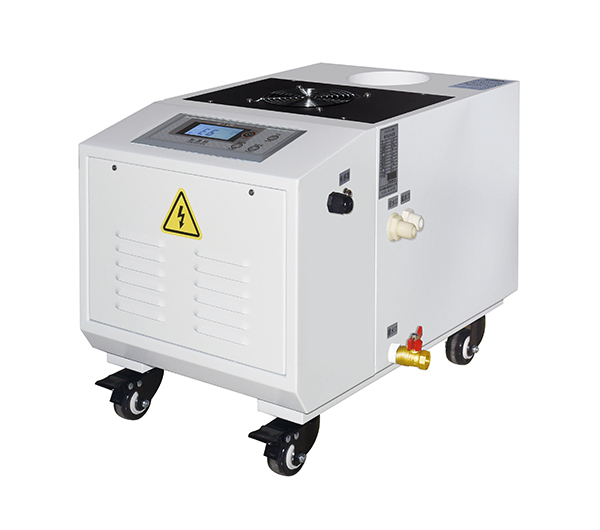

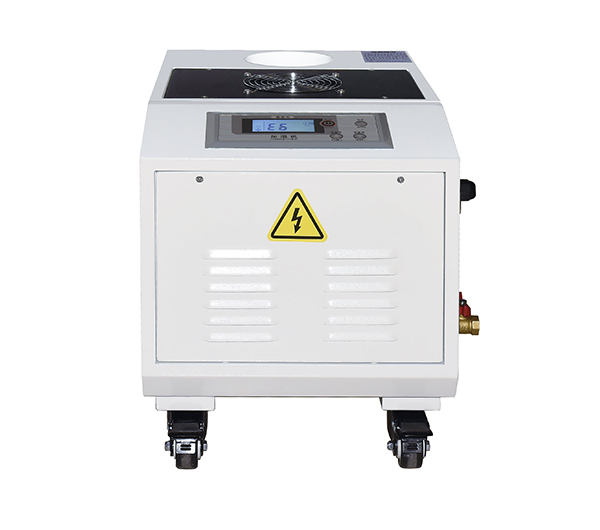

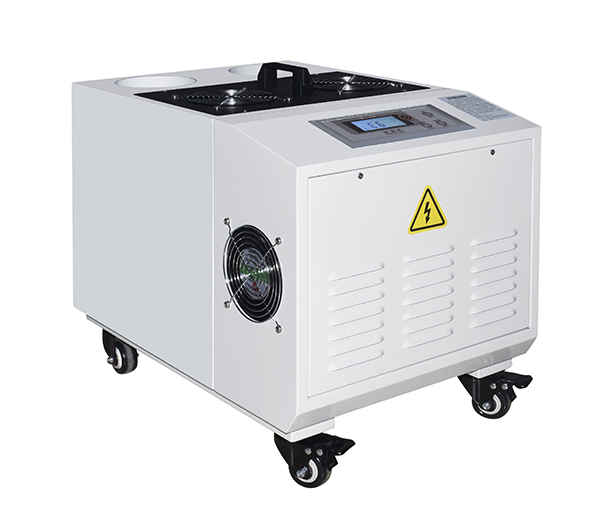

Ultrasonic humidifier

Applicable environment:Widely used in valuables warehouses, pharmaceuticals, leather, footwear, furniture, tobacco, national defense and military industry, aerospace, food processing, precision electronics, pharmaceutical and chemical, machinery manufacturing, textile and chemical fiber, paper printing, civil air defense engineering and many other fields

Product Features:

Special custom:304#, RS485, II0V60Hz, barrel type, manual type, hand push type, wall-mounted type, change color

Quality Certification:

Model:AY-C03EAY-C06EAY-C09EAY-C12EAY-C15EAY-C18EAY-C21EAY-C24EAY-C30EAY-C36EAY-C42EAY-C48EAY-C54EAY-C60E

Buy Online Download

Product parameter
  1. Product model

  2. Adjustment range

  3. control precision

  4. Humidification

  5. Voltage

  6. rated power

  7. Maximum power

  8. Control mode

  9. Display panel

  10. Body protection measures

  11. Water quality filtration

  12. Water inlet method

  13. Fog outlet specifications

  14. Number of fog outlets

  15. weight

  16. Dimensions

  17. proper temperature

  18. Application area

  1. AY-C03E

  2. 20%-99%

  3. ±5%

  4. 3kg/h

  5. 220V, 50Hz

  6. 150W

  7. 300W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ110mm

  14. 1

  15. 18kg

  16. 500*370*400 mm

  17. 5-40°C

  18. 30-60m²

  1. AY-C06E

  2. 20%-99%

  3. ±5%

  4. 6kg/h

  5. 220V, 50Hz

  6. 300W

  7. 600W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ110mm

  14. 1

  15. 20kg

  16. 500*370*400 mm

  17. 5-40°C

  18. 60-90m²

  1. AY-C09E

  2. 20%-99%

  3. ±5%

  4. 9kg/h

  5. 220V, 50Hz

  6. 450W

  7. 900W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ110mm

  14. 1

  15. 20kg

  16. 500*370*400 mm

  17. 5-40°C

  18. 90-120m²

  1. AY-C12E

  2. 20%-99%

  3. ±5%

  4. 12kg/h

  5. 220V, 50Hz

  6. 600W

  7. 1200W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ110mm

  14. 1

  15. 25kg

  16. 500*370*400 mm

  17. 5-40°C

  18. 120-150m²

  1. AY-C15E

  2. 20%-99%

  3. ±5%

  4. 15kg/h

  5. 220V, 50Hz

  6. 750W

  7. 1500W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ110mm

  14. 2

  15. 30kg

  16. 500*420*470 mm

  17. 5-40°C

  18. 150-180m²

  1. AY-C18E

  2. 20%-99%

  3. ±5%

  4. 18kg/h

  5. 220V, 50Hz

  6. 900W

  7. 1800W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ110mm

  14. 2

  15. 32kg

  16. 500*420*470mm

  17. 5-40°C

  18. 180-210m²

  1. Product model

  2. Adjustment range

  3. control precision

  4. Humidification

  5. Voltage

  6. rated power

  7. Maximum power

  8. Control mode

  9. Display panel

  10. Body protection measures

  11. Water quality filtration

  12. Water inlet method

  13. Fog outlet specifications

  14. Number of fog outlets

  15. weight

  16. Dimensions

  17. proper temperature

  18. Application area

  1. AY-C21E

  2. 20%-99%

  3. ±5%

  4. 21kg/h

  5. 220V, 50Hz

  6. 1050W

  7. 2100W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ110mm

  14. 2

  15. 34kg

  16. 500*420*470mm

  17. 5-40°C

  18. 210-240m²

  1. AY-C24E

  2. 20%-99%

  3. ±5%

  4. 24kg/h

  5. 220V, 50Hz

  6. 1200W

  7. 2400W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ110mm

  14. 3

  15. 38kg

  16. 600*540*520 mm

  17. 5-40°C

  18. 240-300m²

  1. AY-C30E

  2. 20%-99%

  3. ±5%

  4. 30kg/h

  5. 220V, 50Hz

  6. 1500W

  7. 3000W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ110mm

  14. 3

  15. 40kg

  16. 600*540*520 mm

  17. 5-40°C

  18. 300-360m²

  1. AY-C36E

  2. 20%-99%

  3. ±5%

  4. 36kg/h

  5. 220V, 50Hz

  6. 1800W

  7. 3600W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ110mm

  14. 3

  15. 42kg

  16. 600*540*520mm

  17. 5-40°C

  18. 360-420m²

  1. AY-C42E

  2. 20%-99%

  3. ±5%

  4. 42kg/h

  5. 220V, 50Hz

  6. 2100W

  7. 4200W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ110mm

  14. 3

  15. 44kg

  16. 600*540*520mm

  17. 5-40°C

  18. 420-480m²

  1. AY-C48E

  2. 20%-99%

  3. ±5%

  4. 48kg/h

  5. 220V, 50Hz

  6. 2400W

  7. 4800W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ160mm

  14. 2

  15. 55kg

  16. 800*650*550mm

  17. 5-40°C

  18. 480-540m²

  1. Product model

  2. Adjustment range

  3. control precision

  4. Humidification

  5. Voltage

  6. rated power

  7. Maximum power

  8. Control mode

  9. Display panel

  10. Body protection measures

  11. Water quality filtration

  12. Water inlet method

  13. Fog outlet specifications

  14. Number of fog outlets

  15. weight

  16. Dimensions

  17. proper temperature

  18. Application area

  1. AY-C54E

  2. 20%-99%

  3. ±5%

  4. 54kg/h

  5. 220V, 50Hz

  6. 2700W

  7. 5400W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ160mm

  14. 2

  15. 58kg

  16. 800*650*550mm

  17. 5-40°C

  18. 540-600m²

  1. AY-C60E

  2. 20%-99%

  3. ±5%

  4. 60kg/h

  5. 220V, 50Hz

  6. 3000W

  7. 6000W

  8. Humidity control

  9. LCD color

  10. Lack of protection, full water protection

  11. Have

  12. Automatic water intake

  13. φ160mm

  14. 2

  15. 62kg

  16. 800*650*550mm

  17. 5-40°C

  18. 600-660m²
