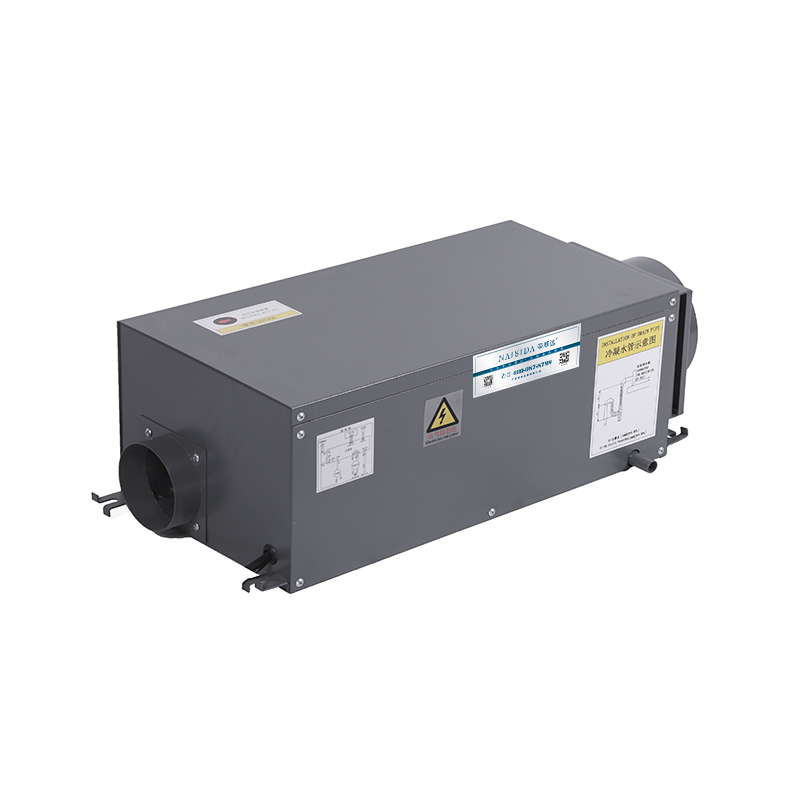

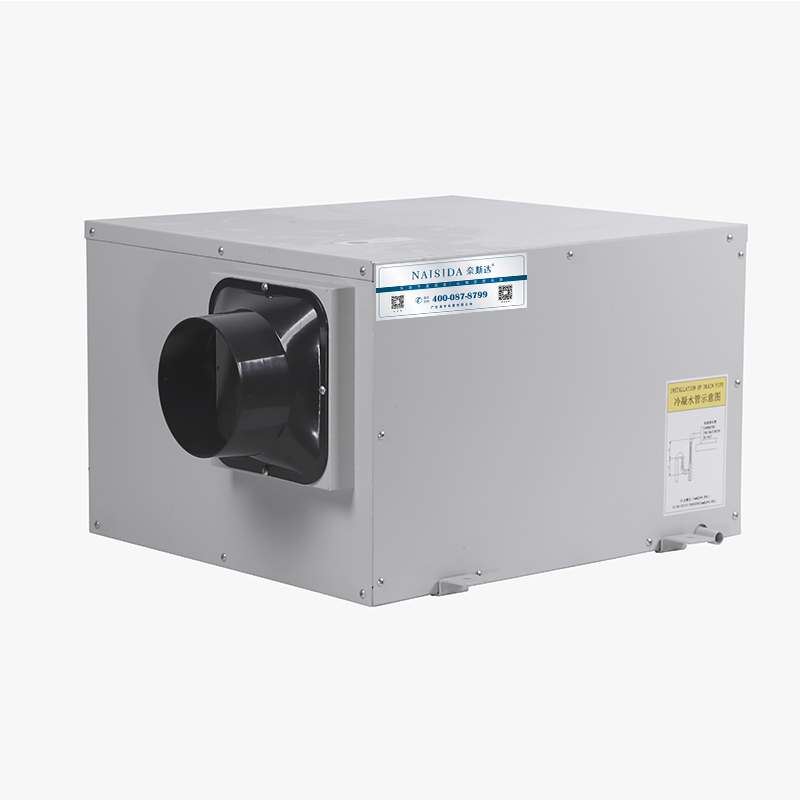

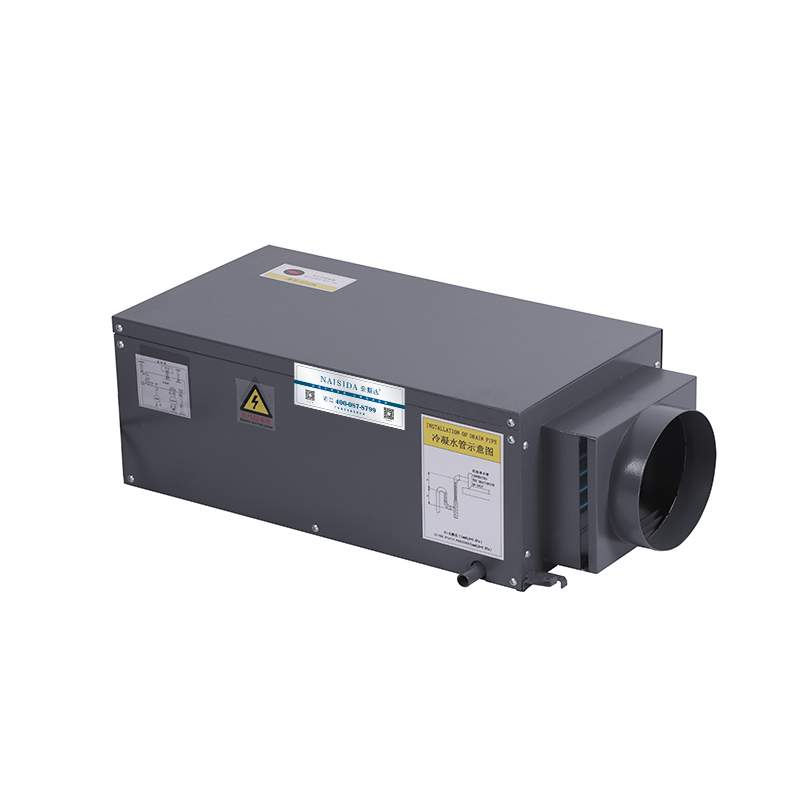

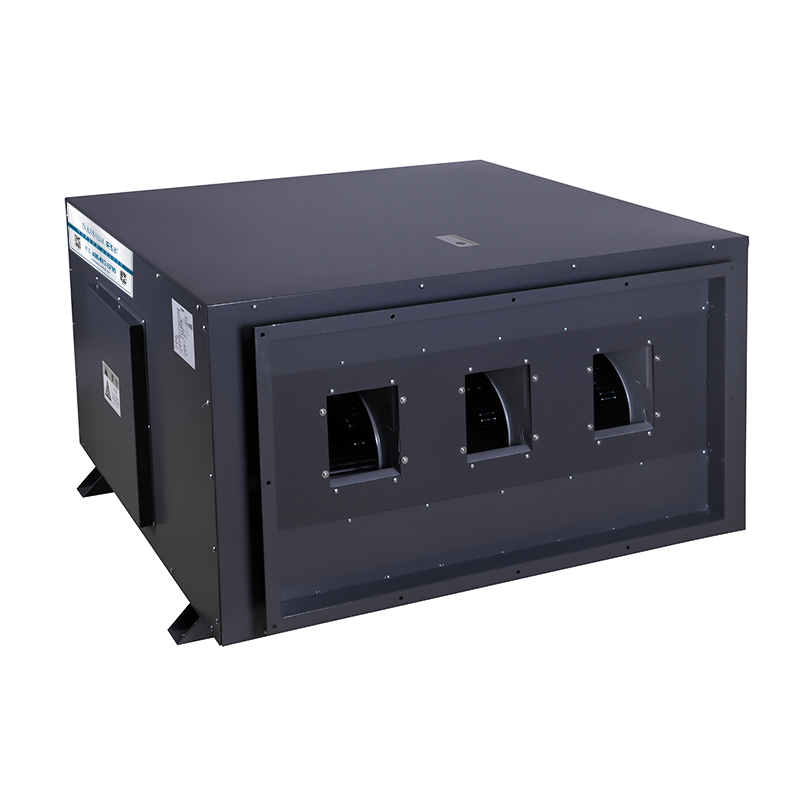

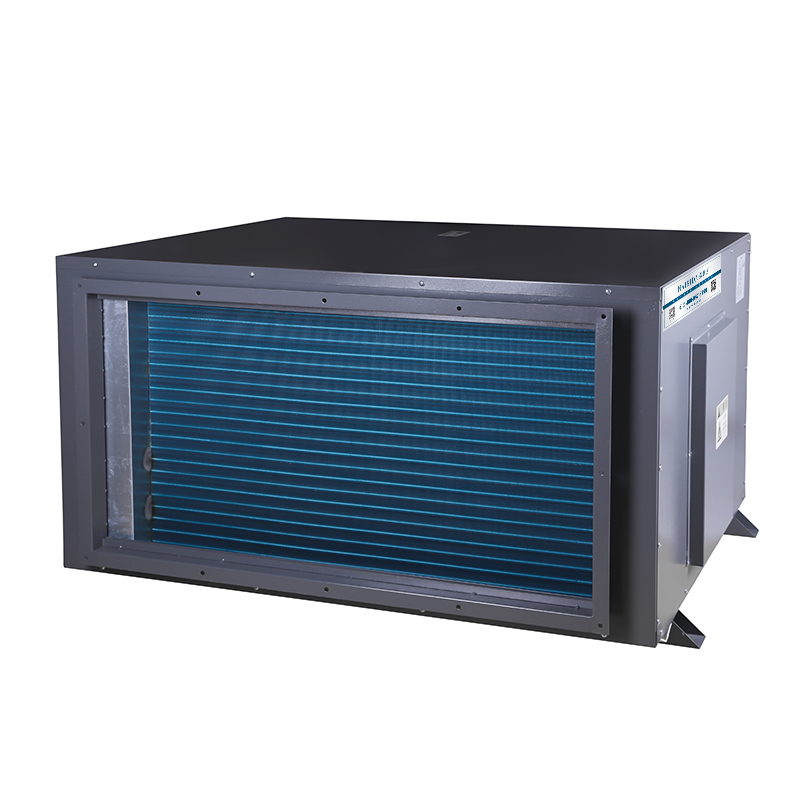

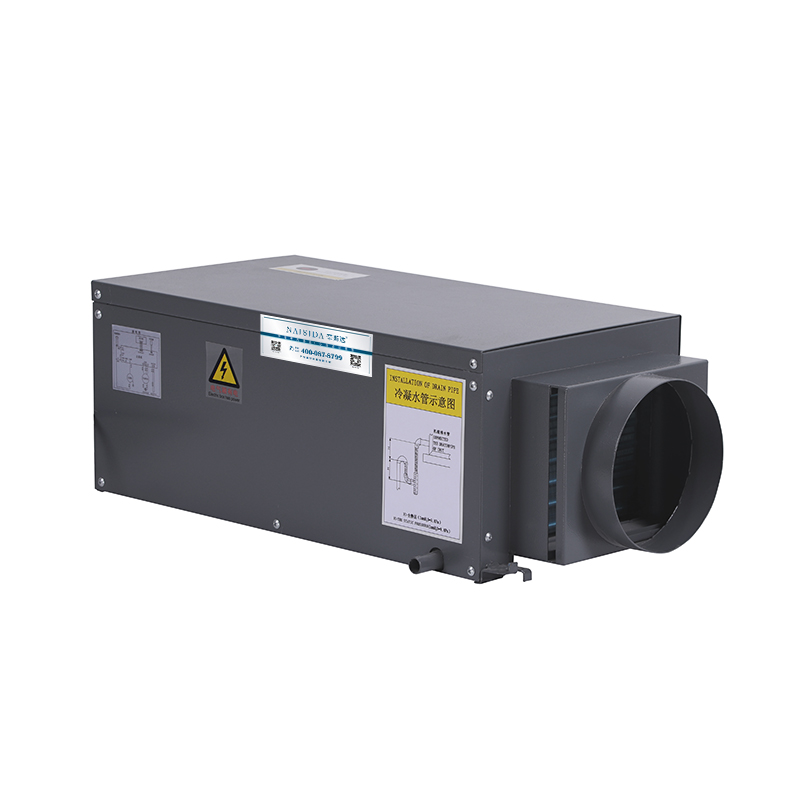

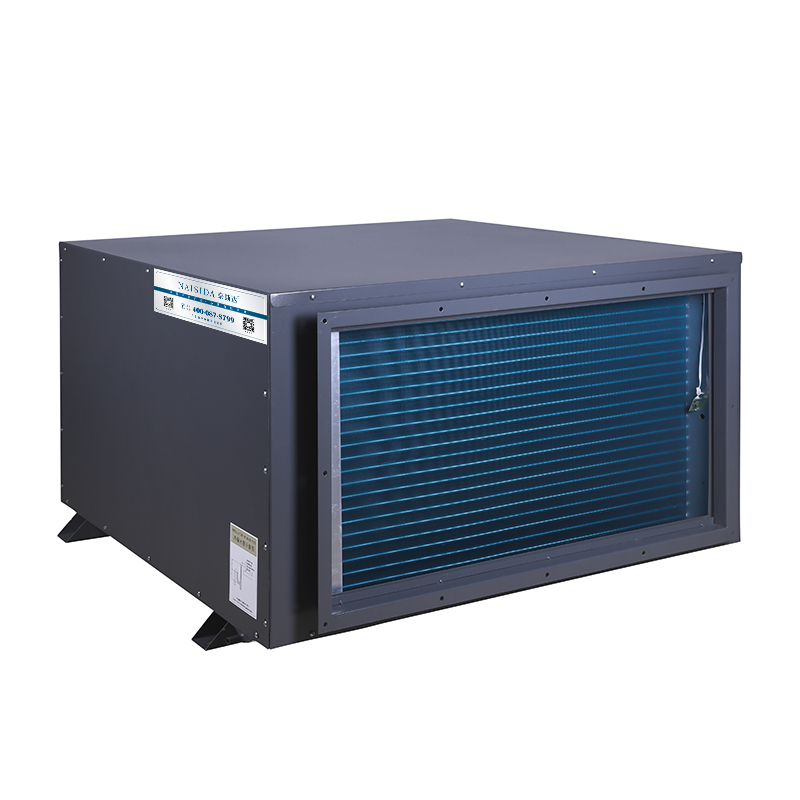

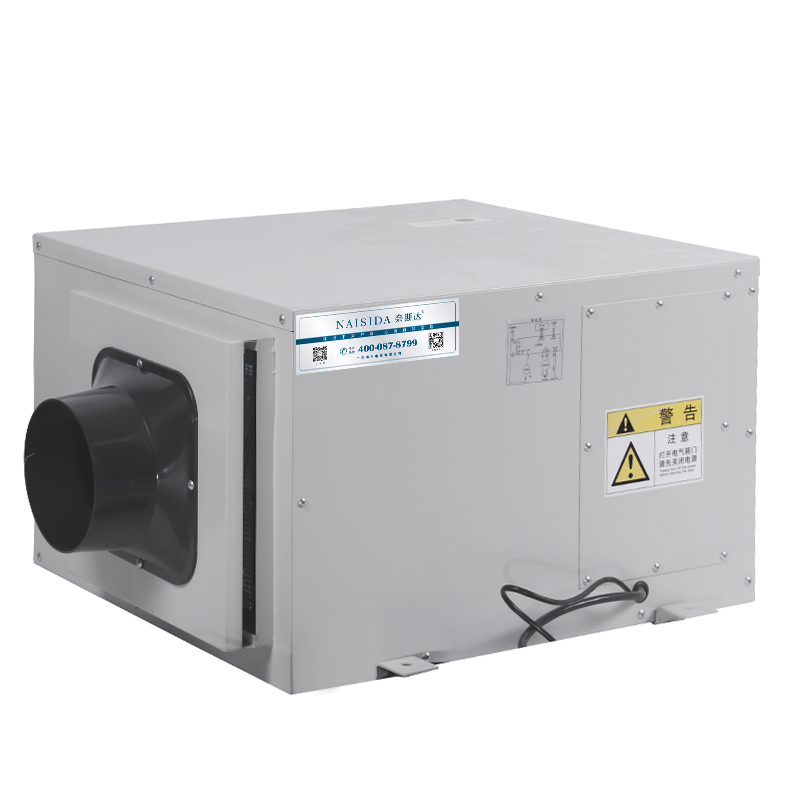

hoisting whole house circulating dehumidifier-

Product parameter

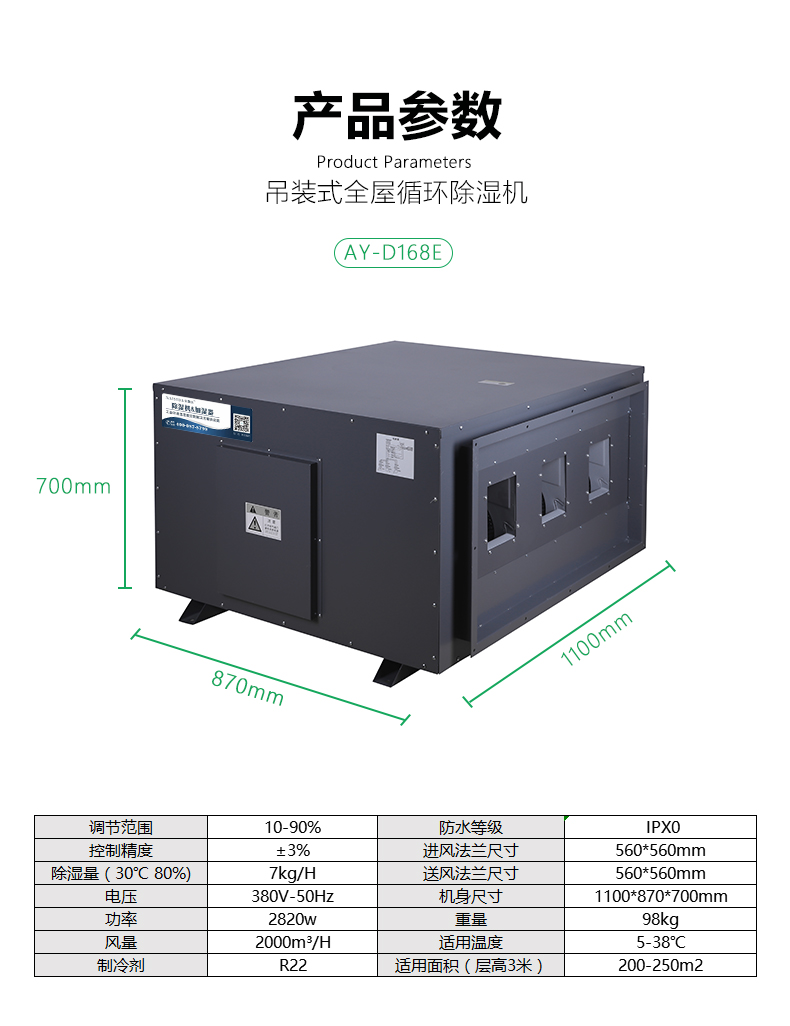

Parameter/Model Adjustment range control precision Dehumidification capacity (30℃ 80%) Voltage power Air volume Refrigerant waterproof level Inlet flange size Air supply flange size Dimensions weight proper temperature Applicable area (3 meters in height) AY-D20E 10-90% ±3% 20L/D 220V-50Hz 300W 165m³/H R22 IPX0 160mm 95mm 655*312*210mm 17kg 5-38°C 20-40m2 AY-D26E 10-90% ±3% 26L/D 220V-50Hz 420w 185m³/H R22 IPX0 160mm 95mm 655*312*210mm 18kg 5-38°C 20-50m2 AY-D38E 10-90% ±3% 38L/D 220V-50Hz 675w 365m³/H R22 IPX0 145mm 145mm 855*600*350mm 25kg 5-38°C 30-60m2 AY-D58E 10-90% ±3% 58L/D 220V-50Hz 880w 365m³/H R22 IPX0 145mm 145mm 855*600*350mm 28kg 5-38°C 50-90m2 AY-D90E 10-90% ±3% 90L/D 220V-50Hz 1100w 1000m³/H R22 IPX0 460*355mm 280*250mm 900*585*397mm 40kg 5-38°C 90-120m2 AY-D138E 10-90% ±3% 138L/D 220V-50Hz 1330w 1000m³/H R22 IPX0 460*355mm 280*250mm 900*585*397mm 45kg 5-38°C 130-180m2 Parameter/Model Adjustment range control precision Dehumidification capacity (30℃ 80%) Voltage power Air volume Refrigerant waterproof level Inlet flange size Air supply flange size Dimensions weight proper temperature Applicable area (3 meters in height) AY-D168E 10-90% ±3% 168L/D 380V-50Hz 2820w 2000m³/H R22 IPX0 560*560mm 560*560mm 1100*870*700mm 98kg 5-38°C 200-250m2 AY-D210E 10-90% ±3% 210L/D 380V-50Hz 3600w 2600m³/H R22 IPX0 580*560mm 360*660mm 1100*870*700mm 98kg 5-38°C 250-300m2 AY-D240E 10-90% ±3% 240L/D 380V-50Hz 4200w 2800m³/H R22 IPX0 580*560mm 360*660mm 1100*870*700mm 115kg 5-38°C 300-350m2 AY-D360E 10-90% ±3% 360L/D 380V-50Hz 6500w 3600m³/H R22 IPX0 610*1060mm 610*1060mm 1100*1300*700mm 205kg 5-38°C 350-500m2 AY-D480E 10-90% ±3% 480L/D 380V-50Hz 8200w 5600m³/H R22 IPX0 610*1060mm 610*1060mm 1200*1100*700mm 220kg 5-38°C 500-800m2
Product Details
